RKE2 Provisioning and Hardening with CIS Profile

RKE2 (Rancher Kubernetes Engine 2) is Rancher’s next-generation, enterprise-ready Kubernetes distribution, designed with security and compliance at its core. It’s fully CNCF conformant and optimized for CIS Benchmark and FIPS 140-2 compliance, making it ideal for secure production environments.

This post walks you through installing and hardening RKE2 cluster — perfect for production, compliance evaluation, or secure proof-of-concept setups with Cilium eBPF.

Prerequisites

IP Address	Hostname	Operating System
172.100.0.5	master01.ajinf.id	Ubuntu 24.04
172.100.0.9	master02.ajinf.id	Ubuntu 24.04
172.100.0.12	master03.ajinf.id	Ubuntu 24.04
172.100.0.13	worker01.ajinf.id	Ubuntu 24.04

Pre Installation

Update & upgrade system

## Run on all nodes
sudo apt update && sudo apt -y upgrade && reboot

Change hostname

## Run on all nodes
hostnamectl set-hostname <master/worker>.<domain>

Disable automatic system upgrades for stability

sudo systemctl disable --now apt-daily-upgrade.timer apt-daily.timer
systemctl list-timers

Add auto-completion

echo "source /usr/share/bash-completion/bash_completion" | tee -a ~/.bashrc
source ~/.bashrc

Set timezone

timedatectl set-timezone Asia/Jakarta

NTP Client

## execute on all nodes
sudo apt install -y chrony

vi /etc/chrony/chrony.conf
---
# Use internal NTP servers for primary synchronization
server 172.100.0.4 iburst prefer
# If you have a second internal NTP server
server 172.100.0.3 iburst

# Log files location.
logdir /var/log/chrony
log measurements statistics tracking

# Allow NTP client access from specific internal networks (if this instance also acts as a server)
allow 10.20.30.0/24

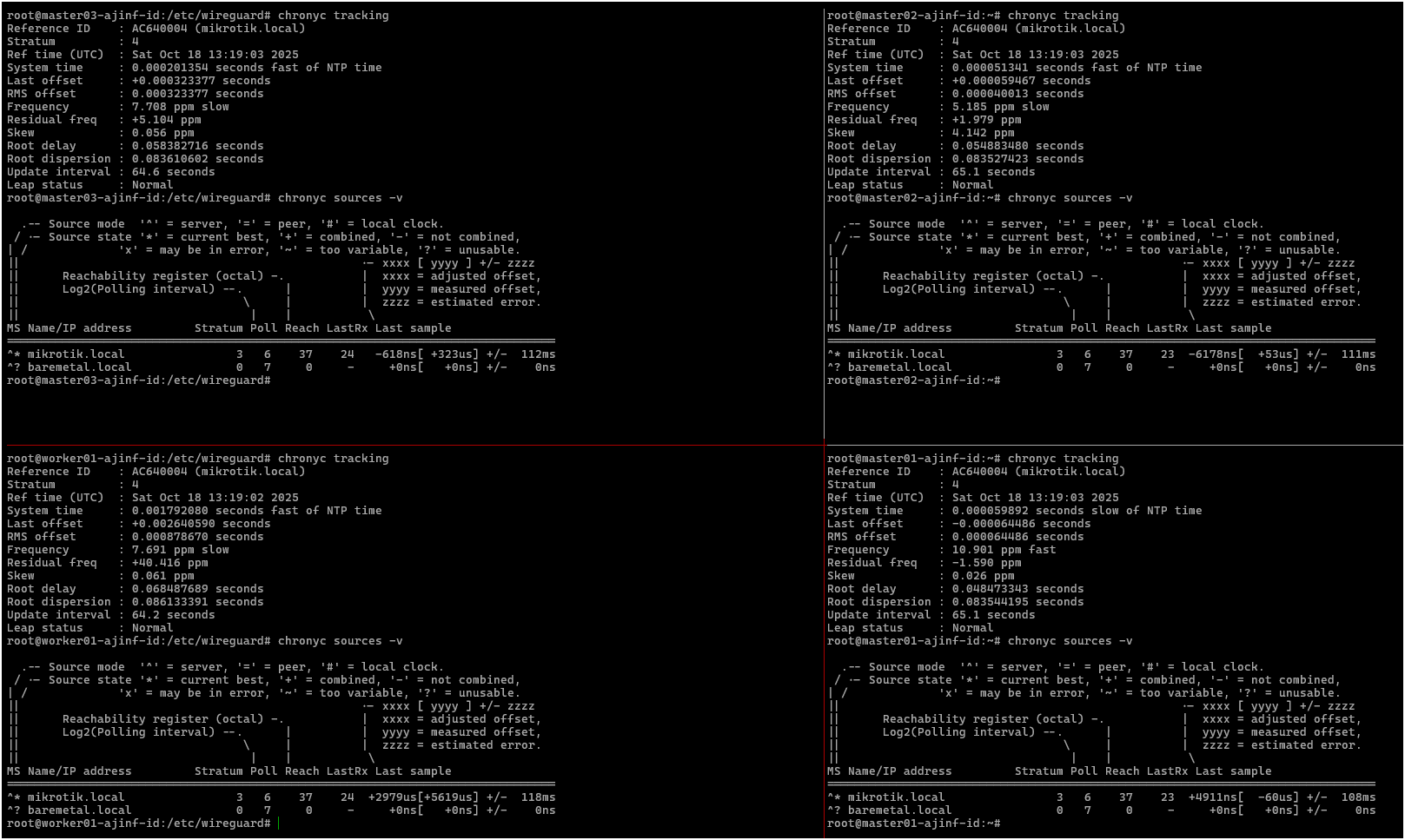

## Verify
systemctl restart chrony
timedatectl
chronyc sources -v
chronyc tracking

alt text

Set DNS Resolver

vi /etc/systemd/resolved.conf
---
[Resolve]
DNS=172.100.0.1 172.100.0.4
DNSStubListener=no

Apply dns server on the nodes

systemctl restart systemd-resolved.service

Map hostname

cat <<EOF | sudo tee -a /etc/hosts
172.100.0.5  master01-ajinf-id master01.ajinf.id master1
172.100.0.9  master02-ajinf-id master02.ajinf.id master2
172.100.0.12 master03-ajinf-id master03.ajinf.id master3
172.100.0.13 master01-ajinf-id worker01.ajinf.id worker1
EOF

Disable swap

sudo sed -i '/ swap / s/^/#/' /etc/fstab
sudo swapoff -a

Update system config

echo "net.ipv4.ip_nonlocal_bind=1" | sudo tee /etc/sysctl.d/ip_nonlocal_bind.conf

cat <<EOF | sudo tee /etc/modules-load.d/containerd.conf
overlay
br_netfilter
EOF


cat <<EOF | sudo tee /etc/sysctl.d/99-kubernetes-cri.conf
net.bridge.bridge-nf-call-iptables  = 1
net.ipv4.ip_forward                 = 1
net.bridge.bridge-nf-call-ip6tables = 1
EOF

cat <<EOF > /etc/sysctl.d/60-keepalived.conf
net.ipv4.conf.all.arp_ignore = 1
net.ipv4.conf.all.arp_announce = 2
net.ipv4.conf.default.arp_ignore = 1
net.ipv4.conf.default.arp_announce = 2
net.ipv4.conf.wg0.arp_ignore = 1
net.ipv4.conf.wg0.arp_announce = 2
EOF

sudo modprobe overlay && sudo modprobe br_netfilter
sysctl -p && sysctl --system

Install RKE2 cluster

Installing master

Install rke2 server

curl -sfL https://get.rke2.io | INSTALL_RKE2_CHANNEL=stable INSTALL_RKE2_TYPE=server sh -

Create config file

mkdir -p /etc/rancher/rke2

Configuration for master01.ajinf.id

sudo tee /etc/rancher/rke2/config.yaml << 'EOF'
write-kubeconfig-mode: "0600"
node-ip: 172.100.0.5
node-name: master01.ajinf.id
cluster-domain: rke2-production
token: rke@password
tls-san:
  - 127.0.0.1
  - 192.168.10.70
  - 172.100.0.5
  - master01.ajinf.id
  - master02.ajinf.id
  - master03.ajinf.id
### Used for Monitoring
etcd-expose-metrics: "true"
### CNI & eBPF
cni: cilium
disable-kube-proxy: true
### ETCD Snapshot and Limit to 2GB
etcd-arg:
  - '--quota-backend-bytes 2048000000'
etcd-snapshot-schedule-cron: "0 3 * * *"
etcd-snapshot-retention: 10
### Audit RKE2
kube-apiserver-arg:
  - "bind-address=0.0.0.0"
  - "audit-log-maxbackup=15"
  - "audit-log-path=/var/log/rke2/audit.log"
  - "audit-log-maxage=40"
  - "audit-log-maxsize=150"
kube-scheduler-arg:
  - "bind-address=0.0.0.0"
EOF

Enable and start rke2 server on master01.ajinf.id

systemctl enable --now rke2-server

Installing and configuring Cilium CNI

sudo sh -c 'cat <<EOF > /var/lib/rancher/rke2/server/manifests/rke2-cilium-config.yaml
apiVersion: helm.cattle.io/v1
kind: HelmChartConfig
metadata:
  name: rke2-cilium
  namespace: kube-system
spec:
  valuesContent: |-
    kubeProxyReplacement: true
    k8sServiceHost: "localhost"
    k8sServicePort: "6443"
    enableHostReachableServices: true
    ipam:
      mode: kubernetes
    bandwidthManager:
      enabled: true
    bpf:
      masquerade: true
    tunnel-protocol: vxlan
    operator:
      replicas: 2
EOF'

Join master02.ajinf.id to the cluster

sudo tee /etc/rancher/rke2/config.yaml << 'EOF'
server: https://master01.ajinf.id:9345
write-kubeconfig-mode: "0600"
node-ip: 172.100.0.9
node-name: master02.ajinf.id
cluster-domain: rke2-production
token: rke@password
tls-san:
  - 127.0.0.1
  - 192.168.100.172
  - 172.100.0.9
  - master01.ajinf.id
  - master02.ajinf.id
  - master03.ajinf.id
### Used for Monitoring
etcd-expose-metrics: "true"
### CNI & eBPF
cni: cilium
disable-kube-proxy: true
### ETCD Snapshot and Limit to 2GB
etcd-arg:
  - '--quota-backend-bytes 2048000000'
etcd-snapshot-schedule-cron: "0 3 * * *"
etcd-snapshot-retention: 10
### Audit RKE2
kube-apiserver-arg:
  - "bind-address=0.0.0.0"
  - "audit-log-maxbackup=15"
  - "audit-log-path=/var/log/rke2/audit.log"
  - "audit-log-maxage=40"
  - "audit-log-maxsize=150"
kube-scheduler-arg:
  - "bind-address=0.0.0.0"
EOF

Join master03.ajinf.id to the cluster

sudo tee /etc/rancher/rke2/config.yaml << 'EOF'
server: https://master01.ajinf.id:9345
write-kubeconfig-mode: "0600"
node-ip: 172.100.0.12
node-name: master03.ajinf.id
cluster-domain: rke2-production
token: rke@password
tls-san:
  - 127.0.0.1
  - 10.20.30.49
  - 172.100.0.12
  - master01.ajinf.id
  - master02.ajinf.id
  - master03.ajinf.id
### Used for Monitoring
etcd-expose-metrics: "true"
### CNI & eBPF
cni: cilium
disable-kube-proxy: true
### ETCD Snapshot and Limit to 2GB
etcd-arg:
  - '--quota-backend-bytes 2048000000'
etcd-snapshot-schedule-cron: "0 3 * * *"
etcd-snapshot-retention: 10
### Audit RKE2
kube-apiserver-arg:
  - "bind-address=0.0.0.0"
  - "audit-log-maxbackup=15"
  - "audit-log-path=/var/log/rke2/audit.log"
  - "audit-log-maxage=40"
  - "audit-log-maxsize=150"
kube-scheduler-arg:
  - "bind-address=0.0.0.0"
EOF

Enable and start rke2 server on master2 and master3 nodes

systemctl enable --now rke2-server

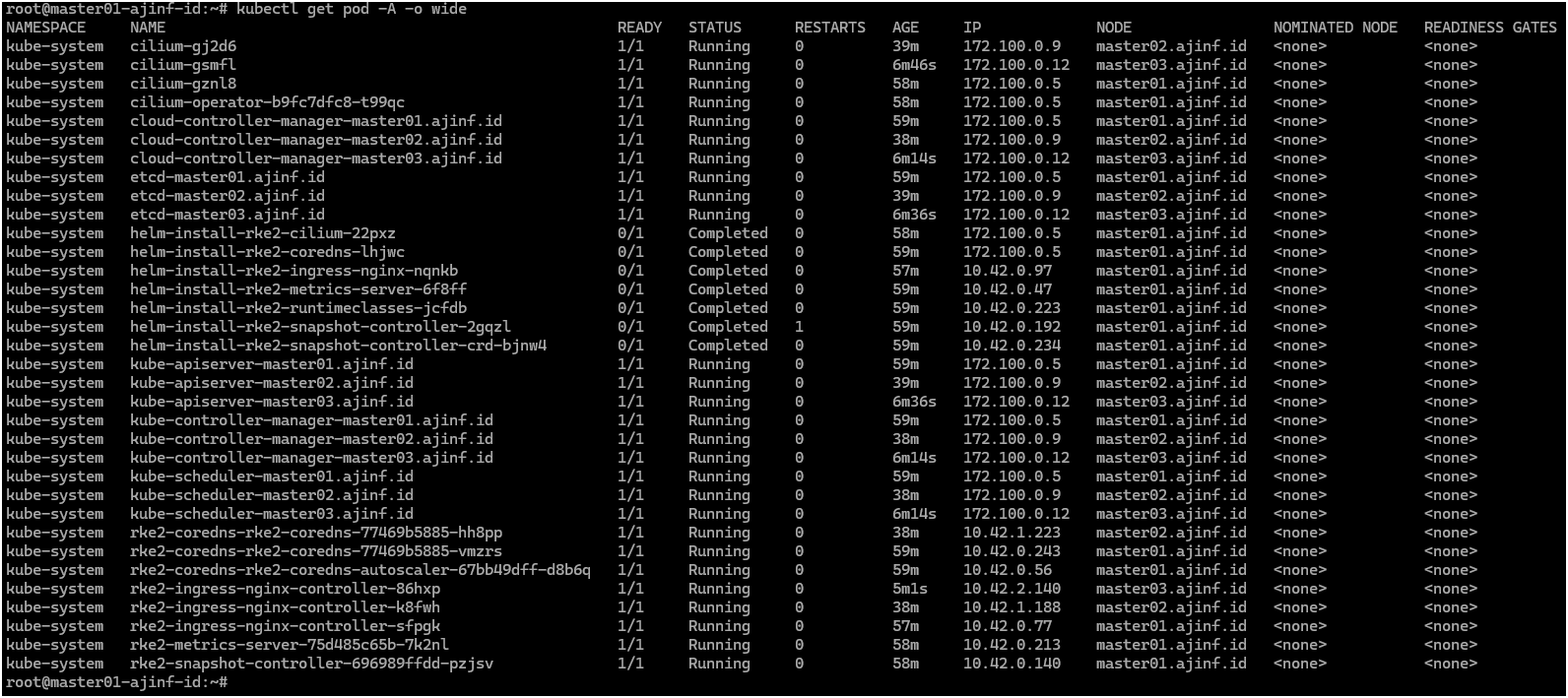

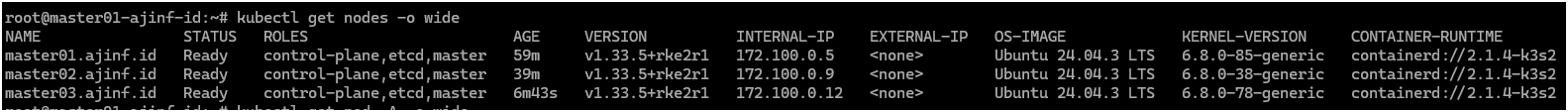

Add kubeconfig to all master nodes

cat<<EOF >> ~/.bashrc
export PATH=$PATH:/var/lib/rancher/rke2/bin
export KUBECONFIG=/etc/rancher/rke2/rke2.yaml
EOF

source ~/.bashrc

alt text

Setup Rancher Dashboard

Add rancher repository

helm repo add rancher-prime https://charts.rancher.com/server-charts/prime
helm repo update

helm install rancher rancher-prime/rancher \
 --create-namespace \
 --namespace cattle-system \
 --set hostname=rancher.<your_domain> \
 --set bootstrapPassword=rke@password \
 --set replicas=1 \
 --set ingress.tls.source=secret \
 --set ingress.tls.secretName=<your_secret> \
 --set ingress.ingressClassName=nginx

Apply CIS Profile

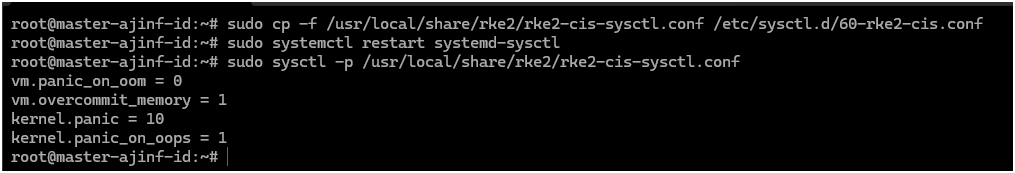

Set CIS kernel parameters on all nodes

Note: protect-kernel-defaults is exposed as a top-level flag for RKE2. If you have set profile to cis-1.XX and protect-kernel-defaults to false explicitly, RKE2 will exit with an error.

sudo cp -f /usr/local/share/rke2/rke2-cis-sysctl.conf /etc/sysctl.d/60-rke2-cis.conf
sudo systemctl restart systemd-sysctl
sudo sysctl -p /usr/local/share/rke2/rke2-cis-sysctl.conf

alt text

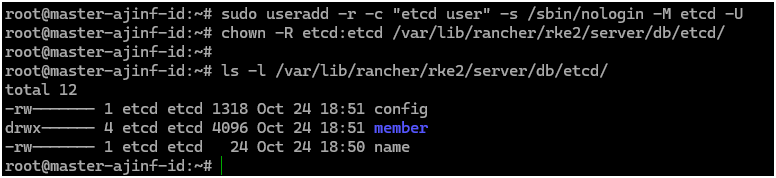

Create the etcd user on master nodes

sudo useradd -r -c "etcd user" -s /sbin/nologin -M etcd -U
chown -R etcd:etcd /var/lib/rancher/rke2/server/db/etcd/

alt text

Edit RKE2 configuration with CIS profile and add Pod Security Admission.

we need to exempt a set of namespaces from the Pod Security Admission policy that prevents Rancher components from running. See the Rancher documentation here: https://ranchermanager.docs.rancher.com/how-to-guides/new-user-guides/authentication-permissions-and-global-configuration/psa-config-templates#exempting-required-rancher-namespaces

## execute on all master node
cat > /etc/rancher/rke2/rke2-pss.yaml << 'EOF'
apiVersion: apiserver.config.k8s.io/v1
kind: AdmissionConfiguration
plugins:
- name: PodSecurity
  configuration:
    apiVersion: pod-security.admission.config.k8s.io/v1beta1
    kind: PodSecurityConfiguration
    defaults:
      enforce: "restricted"
      enforce-version: "latest"
      audit: "restricted"
      audit-version: "latest"
      warn: "restricted"
      warn-version: "latest"
    exemptions:
      usernames: []
      runtimeClasses: []
      namespaces:
        - calico-apiserver
        - calico-system
        - cattle-alerting
        - cattle-csp-adapter-system
        - cattle-epinio-system
        - cattle-externalip-system
        - cattle-fleet-local-system
        - cattle-fleet-system
        - cattle-gatekeeper-system
        - cattle-global-data
        - cattle-global-nt
        - cattle-impersonation-system
        - cattle-istio
        - cattle-istio-system
        - cattle-logging
        - cattle-logging-system
        - cattle-monitoring-system
        - cattle-neuvector-system
        - cattle-prometheus
        - cattle-sriov-system
        - cattle-system
        - cattle-ui-plugin-system
        - cattle-windows-gmsa-system
        - cert-manager
        - cis-operator-system
        - compliance-operator-system
        - fleet-default
        - ingress-nginx
        - istio-system
        - kube-node-lease
        - kube-public
        - kube-system
        - longhorn-system
        - rancher-alerting-drivers
        - security-scan
        - tigera-operator
EOF

vi /etc/rancher/rke2/config.yaml
---
...
profile: "cis"
pod-security-admission-config-file: /etc/rancher/rke2/rke2-pss.yaml
...

Apply configuration by restarting RKE2 server

systemctl restart rke2-server

Configure default Service Account

Kubernetes provides a default service account which is used by cluster workloads where no specific service account is assigned to the pod. Where access to the Kubernetes API from a pod is required, a specific service account should be created for that pod, and rights granted to that service account. The default service account should be configured such that it does not provide a service account token and does not have any explicit rights assignments.

cat<<EOF >> /etc/rancher/rke2/account_update.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: default
automountServiceAccountToken: false
EOF

cat << 'EOF' > /etc/rancher/rke2/account_update.sh
#!/bin/bash -e

for namespace in $(kubectl get namespaces -A -o=jsonpath="{.items[*]['metadata.name']}"); do
  echo -n "Patching namespace $namespace - "
  kubectl patch serviceaccount default -n ${namespace} -p "$(cat /etc/rancher/rke2/account_update.yaml)"
done
EOF

---

sudo chmod +x /etc/rancher/rke2/account_update.sh
bash /etc/rancher/rke2/account_update.sh

Scan the RKE2 Cluster

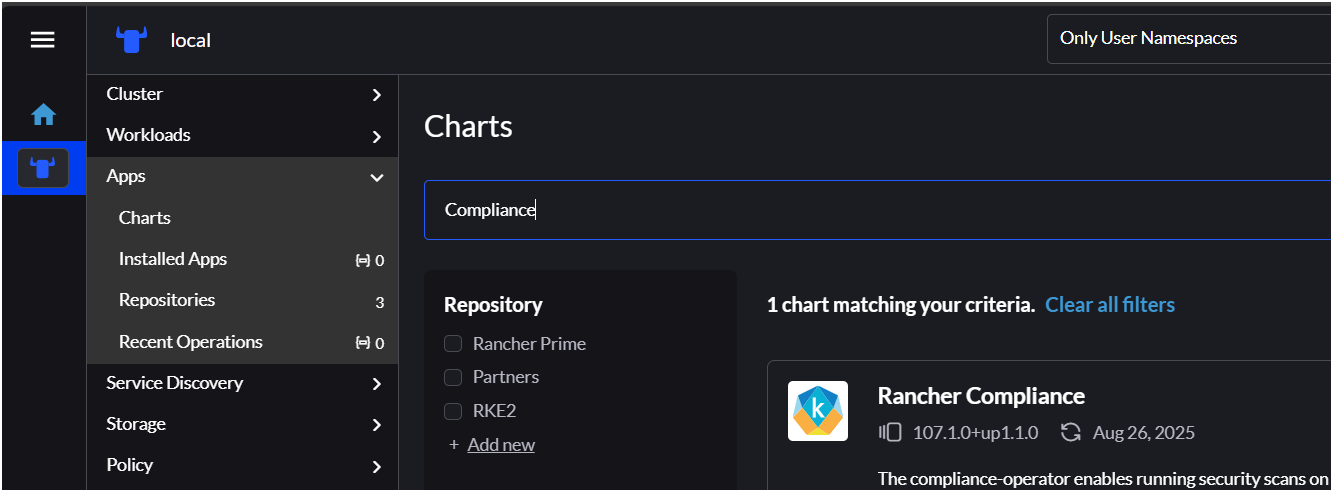

Installing Rancher Compliance Go to Apps > Charts > Search for “Rancher Compliance > Install

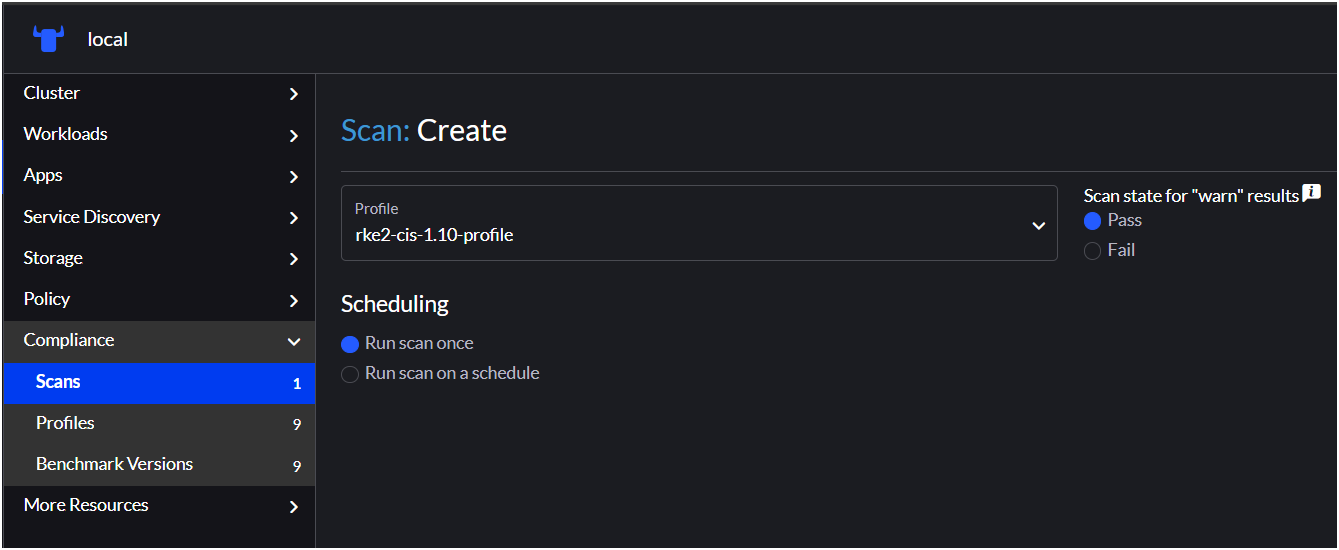

Create cluster scan with profile rke2-cis alt text

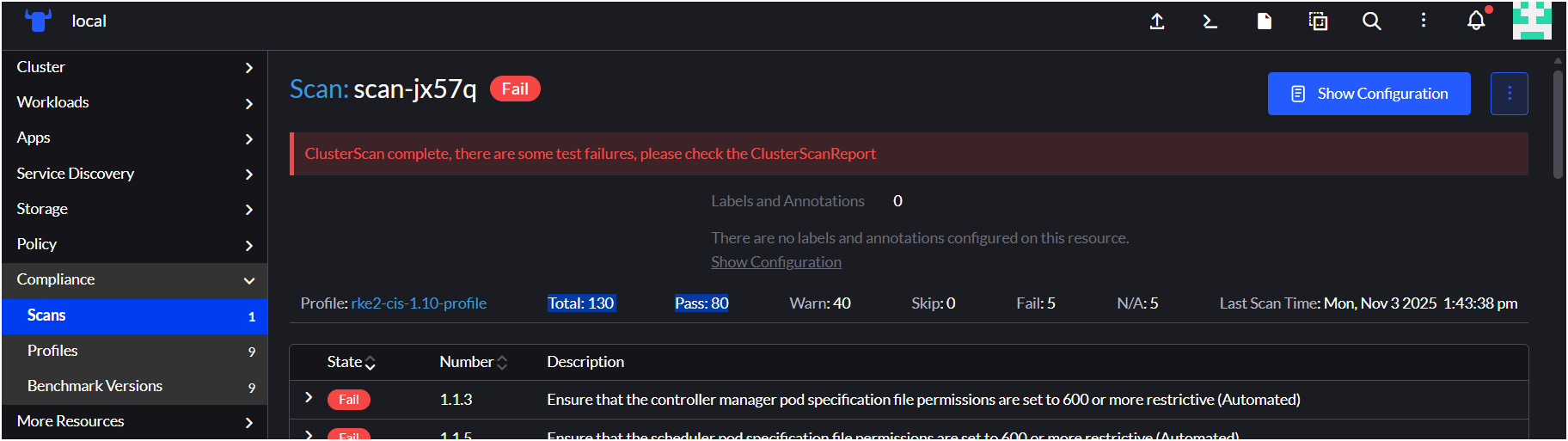

and here is the output scan alt text

Total 130: 80 pass, 40 warn, 5 fails

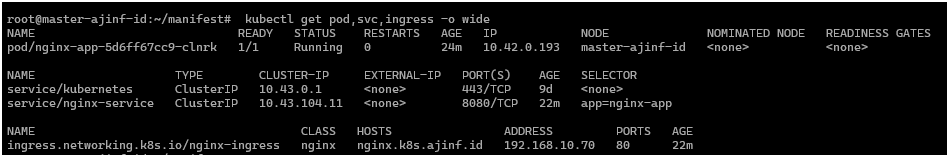

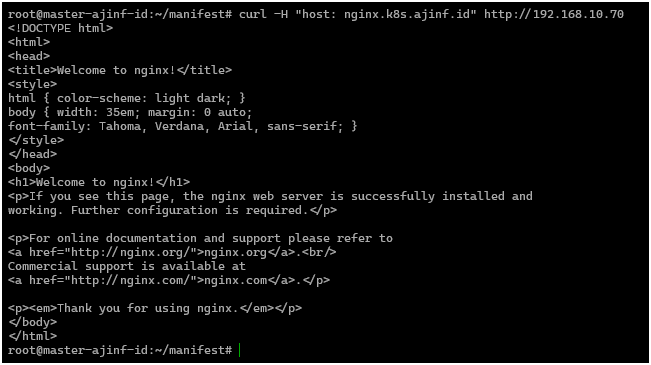

Deploy pods as non root

The RKE2 PSA will restrict root pods, so we must run the pods as non-root users

cat << EOF | kubectl apply -f -
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nginx-app
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nginx-app
  template:
    metadata:
      labels:
        app: nginx-app
    spec:
      securityContext:
        runAsNonRoot: true
        runAsUser: 101
        runAsGroup: 101
        seccompProfile:  # ← ADD THIS at POD level
          type: RuntimeDefault
      containers:
      - name: app
        image: nginxinc/nginx-unprivileged:latest
        ports:
        - containerPort: 8080
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            drop:
            - ALL
          seccompProfile:  # ← AND/OR at CONTAINER level
            type: RuntimeDefault
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-service
spec:
  selector:
    app: nginx-app
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: nginx-ingress
  annotations:
    nginx.ingress.kubernetes.io/rewrite-target: /
spec:
  ingressClassName: nginx
  rules:
  - host: nginx.k8s.ajinf.id  # ← Change to your domain
    http:
      paths:
      - path: /
        pathType: Prefix
        backend:
          service:
            name: nginx-service
            port:
              number: 8080
EOF

alt text

Security Measure	CIS Benchmark Compliance/Rationale
`runAsNonRoot: true`	Critical: Ensures the container process cannot execute as the `root` user (UID 0), preventing container escapes from gaining root access to the host kernel.
`runAsUser: 101` & `runAsGroup: 101`	Principle of Least Privilege (PoLP): Explicitly specifies a non-root, low-privileged user (101 is common for Nginx). This is enforced by the `nginxinc/nginx-unprivileged` image.
`allowPrivilegeEscalation: false`	CIS 5.2.5: Prevents a process inside the container from gaining greater privileges than its parent process. This is a crucial defense against container break-out exploits.
`capabilities: drop: [ALL]`	CIS 5.2.8: Removes all default Linux capabilities (e.g., `NET_RAW`, `SYS_ADMIN`). The application is then granted only the bare minimum required capabilities, drastically reducing the kernel attack surface.
`seccompProfile: type: RuntimeDefault`	CIS 5.2.9 (Strongly Recommended): Enables Seccomp (Secure Computing), which filters the system calls a container can make to the kernel. `RuntimeDefault` is a strong, general-purpose filter provided by the container runtime (like Containerd in RKE2).

CIS hardening restricts cross-namespace communication by default, we have to create Network Policy to allow cross-namespace traffic between ingress and other pods

cat << EOF | kubectl apply -f -
apiVersion: cilium.io/v2
kind: CiliumClusterwideNetworkPolicy
metadata:
  name: allow-cross-namespace
spec:
  description: "Allow traffic between all namespaces"
  endpointSelector: {}  # All pods
  ingress:
  - fromEndpoints:
    - {}  # Allow from all pods
EOF

While these security settings are excellent, they introduce trade-offs in deployment and troubleshooting.

Factor	Plus (+) Security/Stability	Minus (-) Operational Maintenance
`runAsNonRoot: true`	Prevents host-level root access, isolating the blast radius of a vulnerability.	Requires the container image to be designed correctly (e.g., proper file permissions, no reliance on installing packages post-startup).
`capabilities: drop: [ALL]`	Severely limits what an attacker can do by blocking privileged kernel actions.	Difficult Troubleshooting: If the application needs a specific capability (e.g., `NET_BIND_SERVICE` for ports < 1024), the pod will crash with a cryptic “Permission denied” error, requiring tedious trial-and-error.
`seccompProfile`	Provides robust defense against zero-day kernel exploits by restricting system calls.	Debugging Complexity: If an application relies on a syscall not in the `RuntimeDefault` profile, the application will silently crash or fail, making root-cause analysis difficult without kernel-level tracing.
CIS Profile Enforcement	Ensures every workload meets a minimum bar of security (your restricted PSA profile).	Workload Friction: Prevents un-hardened, off-the-shelf public images (like older Nginx/busybox images) from running unless they are rebuilt to be non-root.

Verify by accessing pods and web ui

Sources

Introduction RKE2
